HK series
Cutting/ grinding liquid chiller
Feature
- Prevent deterioration of liquid.
- Open coil type heat exchanger can prevent the obstruction problem of liquid circulating system.
- Advance the speed of process.
- Maintain the stability of dielectric fluid, advance the process quality.
- Avoid fire risk cause by temperature rise and accumulating of dielectric fluid, advance the working safety.
- Reduce the wastage of electrode.
- Prevent the spreading of foul odor air, reduce the air pollution.
- Easy operation and low noise.
- Made of anticorrosive material.
Control system
Control the coolant temperature with the accuracy of ±0.01K by PID calculation.
Control the coolant temperature with the accuracy of ±1K by ON-OFF of compressor working.
Using DC inverter compressor and inverter control modular which includes energy-saving management can achieve high-accuracy temperature control and intelligent control.

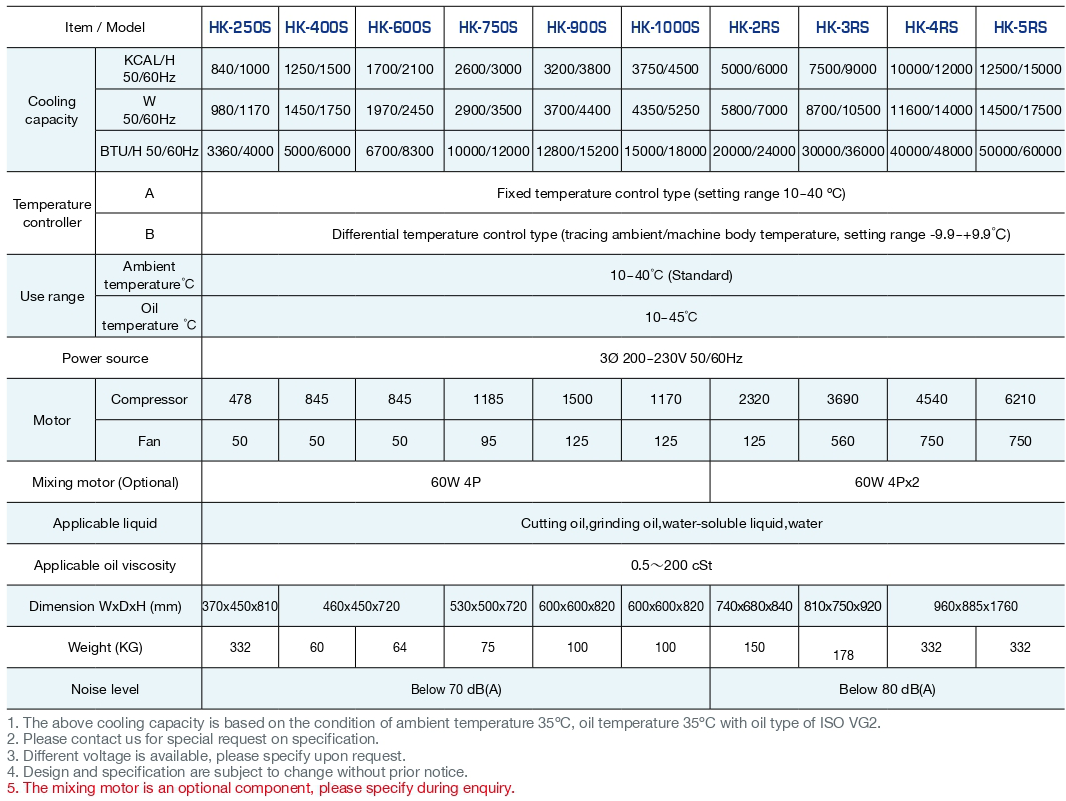

Specification

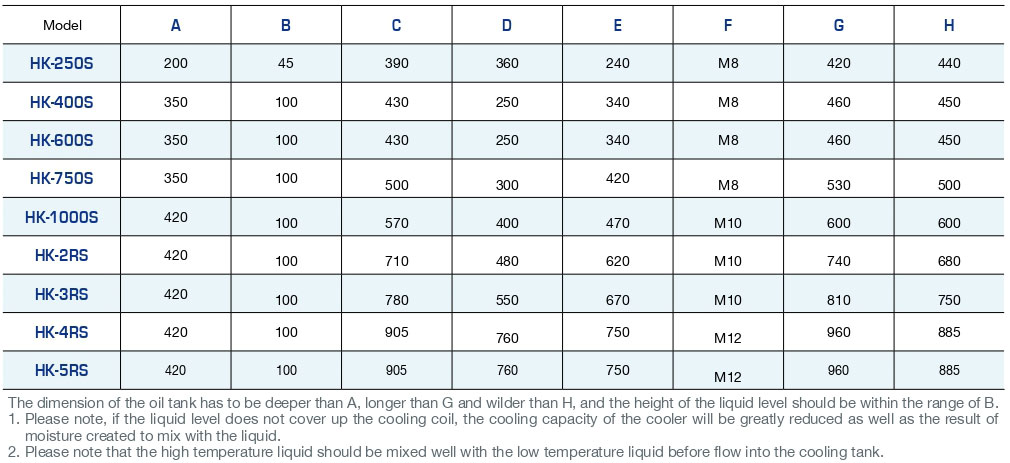

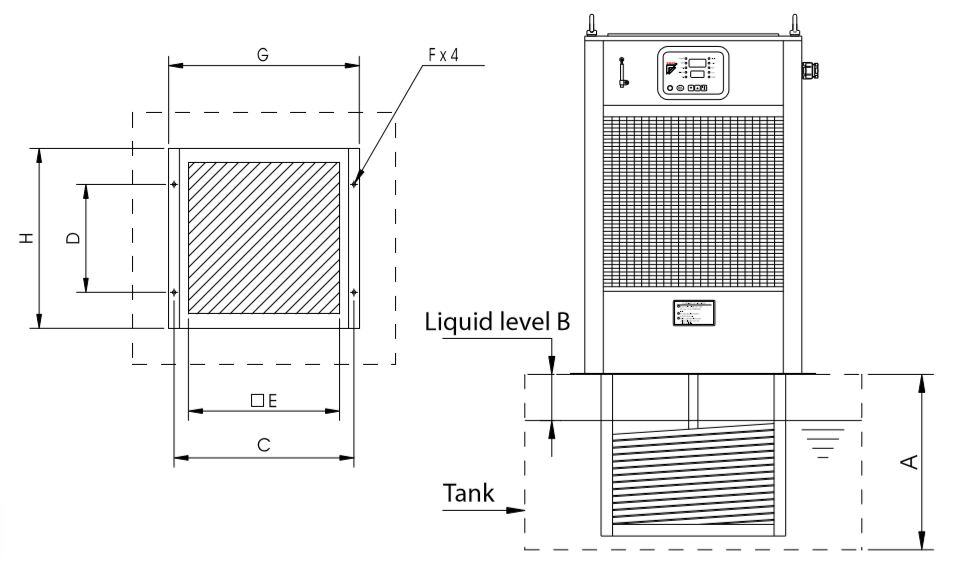

Opening Dimension Of Oil Tank
Applications
Spindle, Linear Motor, Ball Screw, Grinding Liquid, CNC Cutting System, CNC Lathe, Other Machining Center
Performance Curve
